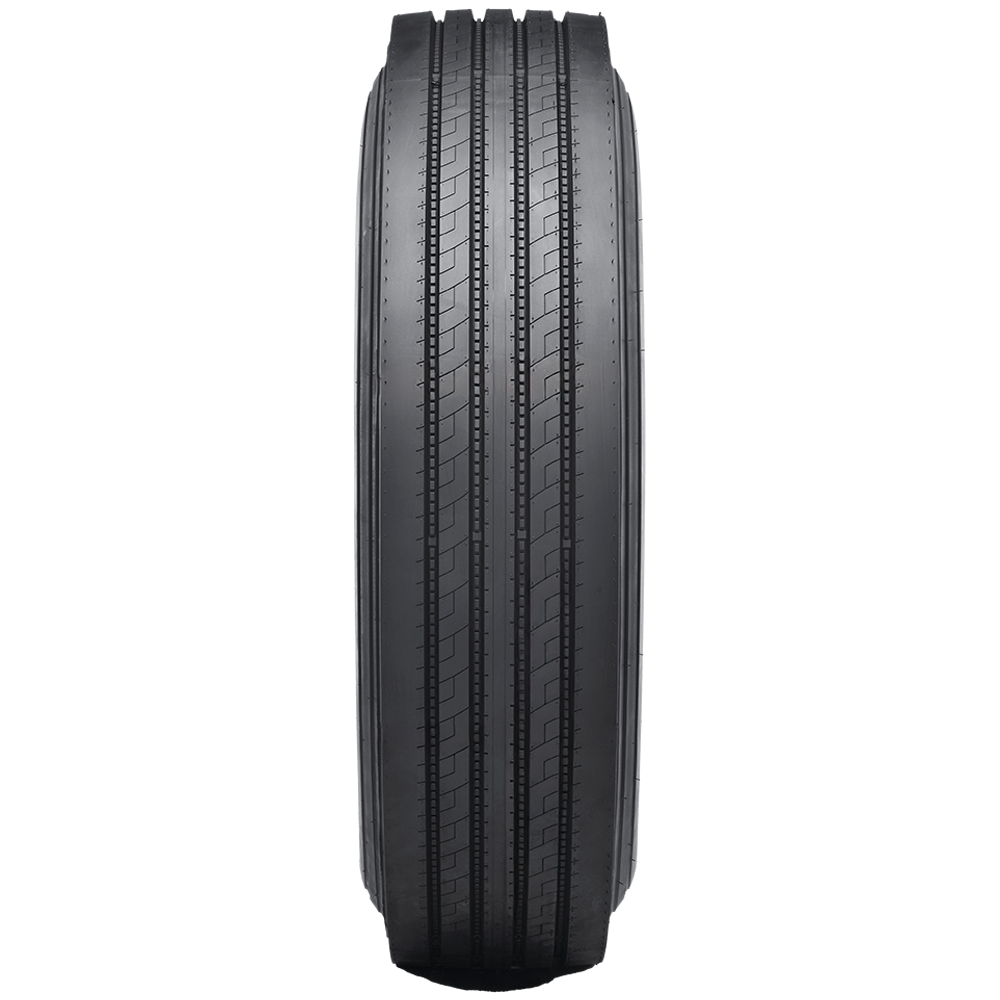

Four longitudinal grooves effectively reduce rolling-resistance and enhance fuel economy
Close shoulder design improves directional driving experience, anti-skid and prevents uneven wear
Small grooves on pattern blocks effective improve crown heat emission
Optimized tread formula provides excellent wear-resistance
Size | PR | Load Index Single/Dual | Load Range | Speed | Designed Outer Diameter | Designed Section Width | Tread Depth | Single | Dual | standard rim | ||
Kg | Kpa | Kg | Kpa | |||||||||
11R22.5 | 16 | 146/143 | H | L | 1047 | 272 | 15.0 | 3000 | 830 | 2725 | 830 | 8.25 |
11R24.5 | 16 | 149/146 | H | L | 1093 | 268 | 14.8 | 3250 | 830 | 3000 | 830 | 8.25 |
12R22.5 | 18 | 152/149 | J | L | 1074 | 290 | 16.2 | 3550 | 930 | 3250 | 930 | 9.00 |
285/75R24.5 | 16 | 147/144 | H | L | 1046 | 272 | 14.5 | 3075 | 830 | 2800 | 830 | 8.25 |
295/75R22.5 | 16 | 146/143 | H | L | 1006 | 288 | 15.0 | 3000 | 830 | 2725 | 830 | 9.00 |
295/80R22.5 | 18 | 152/149 | J | M | 1039 | 295 | 15.0 | 3550 | 900 | 3250 | 900 | 9.00 |
315/80R22.5 | 20 | 157/154 | L | L | 1076 | 310 | 15.0 | 4125 | 900 | 3750 | 900 | 9.00 |
